CNC Fixture Plate
PVC, wood or acrylic jigs, templates and router guides made to dimension.
- Material / grade
- Rigid PVC sheet for the quoted prototype or fixture
- Process / finish
- Tolerance checked
- Product type
- Rigid PVC prototype fixture

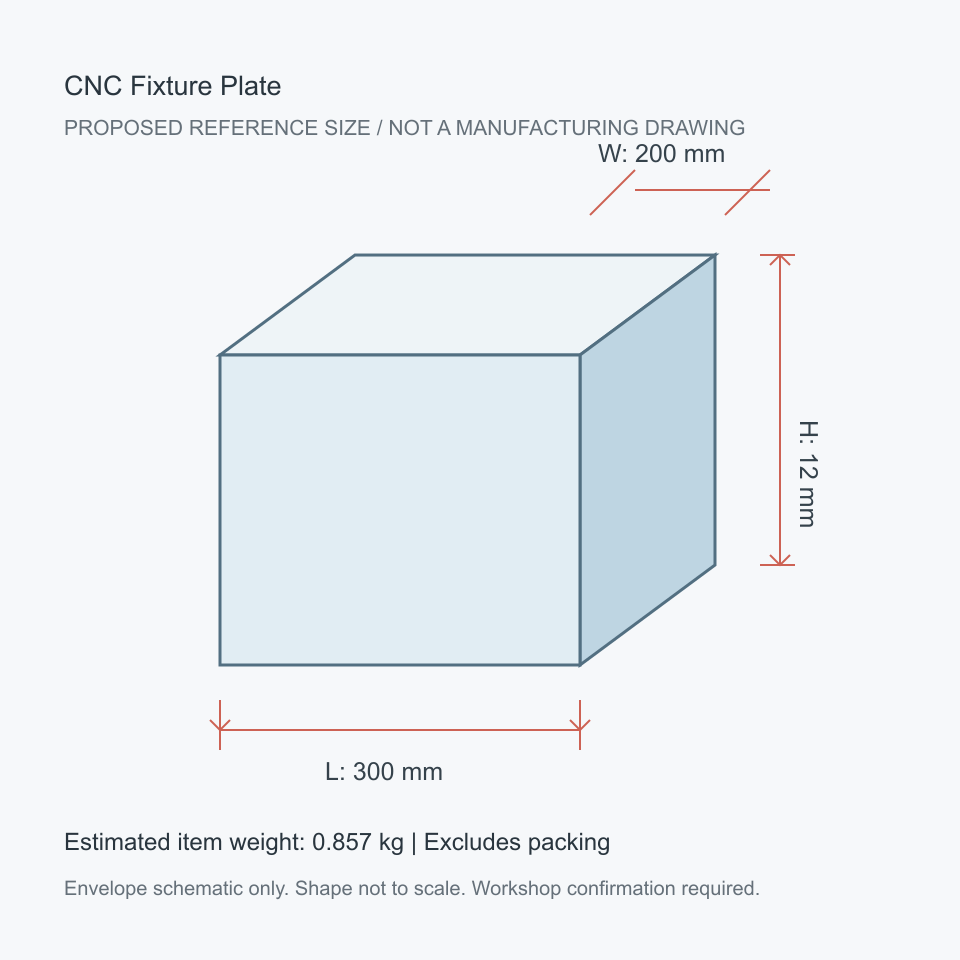

- Proposed size (L x W x H)
- 300 x 200 x 12 mm
- Size options
- 200 x 150 or 300 x 200 mm
- Estimated item weight
- 0.857 kg (approximately +/- 35%)
Estimate assumptions
Rigid PVC assumption at 1400 kg/m3; 15% pocket and hole removal. Clamps, pins and fasteners excluded.
Volume x assumed density (1400 kg/m3) x retained material (85%). The +/- 35% band is a planning allowance, not a validated tolerance. Hardware, finish and packaging are excluded. Final dimensions and packed weight require workshop confirmation; estimates are not used as shipping weights.
CNC milling, pockets and holes. Confirm sheet grade, thickness and tolerances in the drawing. No laser processing of PVC.
Starting price is indicative. Final size, stock, quantity, artwork and delivery are confirmed in your quotation.
